pruduct description

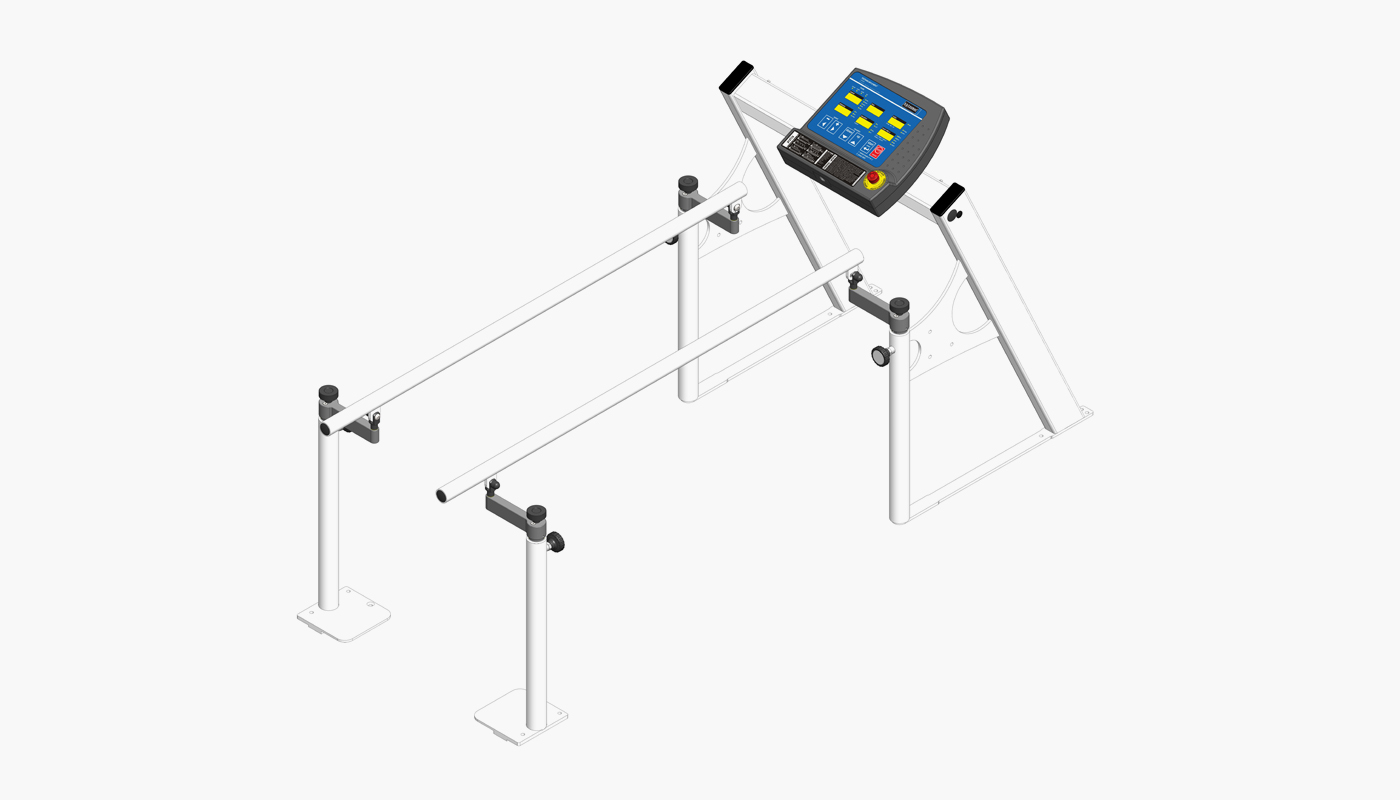

The width adjustment is made by turning of two swivel arms (165 mm radius) witha covering of 180 degrees (+/- 90 degrees from the middle position). The swivel arms are fixed to the locking bar with serrated discs.

The height adjustment is done by pulling the locking bar up or down in the guiding tube while the locking mechanism is pulled. The locking bolts consist of the bolt, spring, safety thread and the pulling knob.

The front guiding tubes are fixed to the front columns, the aft guiding tubes are welded to the roller covers.

technical data

height above the running surface:

  • max. adjustment top: 1200 mm
  • min. adjustment bottom: 750 mm

width between bars:

  • max. adjustment inside: 380 mm
  • max. adjustment outside: 1040 mm

length of the handrail tubes: 1500 mm

tube diameter: 40 mm

tube material: steel tube 5mm powder coated

weight: 69 kg

safety instructions

Attention!

Adjustment of the handrails while in use by the subject is not permitted. Before height adjustment loosen the top levers by two turns.

For adjusting the height, turn the locking knob to unlock the safety thread. Then hold the swivel arm with one hand and pull out the locking knob. Now pull the swivel arm up or down until the desired position is reached. Finally, release the locking knob und tighten the safety thread by turning the locking knob clockwise. Now tighten the top lever again.

Children are not permitted on the treadmill without permanent supervision and an installed fall arrest system.
