Sport-Rehab system solution for gait therapy and athletics training

recommended system configuration by h/p/cosmos^®

on request

This system solution for gait therapy and athletics training allows overfrequency training by the relief of body weight and it also features a sufficient slope of the treadmill. The robowalk® expander offers an individually adjustable draw resistance and draw support.
The weight relief system airwalk® ap supports by the dynamic 1-point-suspension the up and down movement during walking, running and sprinting.
Because of that a physiological gait pattern is guaranteed, with concurrent liberty for flexible movements and body curls.

Recommended Configuration

Product List

These application included:

Product
Pos.	SKU	Product	Preview	Quantity	Price
1	cos30004va04-0152	h/p/cosmos pulsar® 3p		1	Inquire

Components
Pos.	SKU	Product	Quantity	Price
2	cos101277va01	„science port“ speed output with raw speed data excluding the “smoothing algorithms”	1	Inquire
3	cos10159va06	Special speed 0 - 45 km/h 190/65-3p for sprinting and speed training for models with running surface 190/65 cm, 3-phase	1	Inquire
4	cos15133-03	Handrail crossbar 65/36 arched with grip cover crossbar with fixation clamps for handrail Æ 60 mm, for models with running surfaces 170&190/65 cm	1	Inquire
5	cos14763-01	Handrail left shortened (speed) xx/65 short handrail left with extra grip outside for models with running surfaces 170&190/65 cm (not for h/p/cosmos locomotion®)	1	Inquire
6	cos102187	Footboard right extra wide (speed) 190/65 for diagnostics and safe jumping on and off during sprint and co-ordination training	1	Inquire
7	cos14764	Footboard left extra wide (speed) 190/65 for diagnostics and safe jumping on and off during sprint and co-ordination training	1	Inquire
8	cos101626-01	LCD Monitor TV 46" (with a small monitor stand for table) for example for SpeedLab® Speed Court display or for the virtual training module of zebris	1	Inquire
9	cos101624	Monitor stand mobile for LCD/TV 32-60'' monitor stand (without monitor!) for additional TV / monitor (max. load: 30 kg), height: 180 cm.	1	Inquire
10	cos13476-01	DELL Laptop Computer technical details and specification on request	1	Inquire
11	cos12769-01	USB to RS232 converter Chipsatz: FTDI / FT232RL 1× RS232-plug(Sub D 9-pol. male) / 1× USB A Stecker	1	Inquire
12	cos12769-01	USB to RS232 converter converter from USB to serial port RS232 (Sub-D 9-pin male)	1	Inquire
13	cos00097010035	Connection cable RS232 10 m RS232, 10 m (Sub-D 9-pin male/female), USB-Adapter optionally available (cos12769-01)	1	Inquire
14	cos16487	3rd interface RS232 com3 coscom® 115,200 bps additional RS232 port for ECG, EEG, PC, or UserTerminal with increased data speed	1	Inquire
15	cos30022-01va02	robowalk® expander F 170&190/65 for the front area - for all h/p/cosmos treadmills with running surface 170&190/65 cm	1	Inquire
16	cos30023-01va02	robowalk® expander B 170&190/65 for the rear area - for all h/p/cosmos treadmills with running surface 170&190/65 cm	1	Inquire

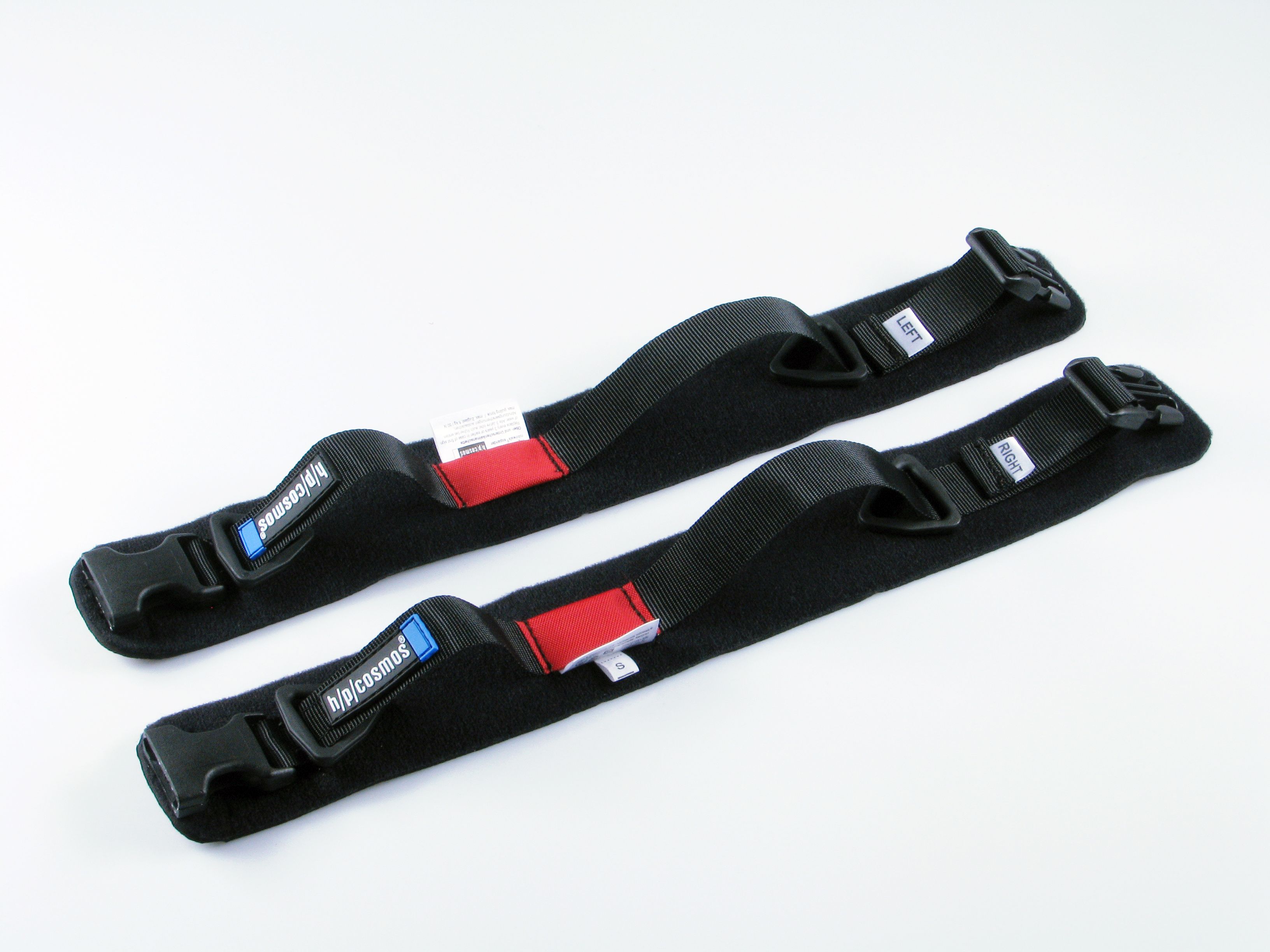

17	cos101050-L	Leg cuff thigh L, 1 pair	1	Inquire
18	cos101050-M	Leg cuff thigh L, 1 pair	1	Inquire
19	cos101050-S	Leg cuff thigh S, 1 pair	1	Inquire
20	cos101051-XS	Leg cuff shank, 1 pair	1	Inquire
21	cos30028	airwalk® ap unweighting system dynamic up to ca.120 kg with fall-stop-prevention & automatic running-belt-stopp, compressor required	1	Inquire
22	cos102342	Option emergency stop for h/p/cosmos airwalk® ap additional function of airwalk ap also as fall prevention system (safety arch) with autom. treadmill belt stop & chest belt size M	1	Inquire
23	cos102489	Option AirCushion mode for airwalk® ap additional valve (mode switch) for airwalk ap for "balancing" the subject. Air cylinder works as "air cushion"	1	Inquire
24	cos14903-03-L	Chest belt L for safety arch chest belt for safety arch, size L (chest measurement: 105-135 cm)	1	Inquire
25	cos14903-03-M	Chest belt M for safety arch chest belt for safety arch, size M (chest measurement: 85-115 cm)	1	Inquire
26	cos14903-03-S	Chest belt S for safety arch chest belt for safety arch, size S (chest measurement: 65-95 cm)	1	Inquire
27	cos10094	Compressor for h/p/cosmos airwalk® 50/90/ap air compressor up to 8 bar, very silent with 3 m air connection hose, (operation: 230V / 10A fuse)	1	Inquire
28	cos101664va02	Optogait® LED motion/gait analysis system for treadmills 190/65 optical LED gait analysis system for treadmills 190/65 (incl. trigger function), price only valid for initial fitting-out	1	Inquire
29	cos101664va02	Optogait® LED motion/gait analysis system for treadmills 190/65 optisches Mess- und Analysesystem für Laufbänder 190/65 (inkl. Triggerfunktion), Preis gültig nur bei Erstausstattung EN	1	Inquire
