These application included:

Product
Pos. SKU Product Preview Quantity Price
1 cos30004va04 pulsar® 3p, with MCU5 (6 displays)

-Table running area: length 190 cm (6ft 2.8"), length 65 cm (2ft 1.6")
-Speed range: 0 to 40.0 km/h (0 to 11.1 m/s) (0 to 24.8 mph)
-Slope: -25.0 % to 25.0 % (-14.0° to 014.0°) Motor adjustment
-Digital interface: 2 RS 232 ports, com1 and com2 ports, 9600 bps: includes PC-protocol, h/p/cosmos coscom® and printer protocol serial ports
-Frame colour: pure white RAL 9010 (powder coated)
-Categories: active treatment medical devices and active diagnostic medical devices according to MDD medical device risk class IIb
-Category of use: S, according to ISO 20957-1
-Precision class: A (high precision) according to EN 957-6

 		1 Inquire
Components
Pos. SKU Product Preview Quantity Price
2 cos101277 "Science port" speed output TTL
For scientific instruments and applications the raw digital speed signal data of the treadmill speed sensor are accessible here at an additional jack. It allows even access to falling and rising signal flank without any averaging calculation. 		1 Inquire
3 cos10159va06 Special speed 0 - 45 km/h 190/65-3p
for sprinting and speed training for models with running surface 190/65 cm, 3-phase 		1 Inquire
4 cos15133-03 Handrail crossbar 65/36 arched with grip cover
crossbar with fixation clamps for handrail Æ 60 mm, for models with running surfaces 170&190/65 cm 		1 Inquire
5 cos14763-01 Handrail left shortened (speed) xx/65
short handrail left with extra grip outside for models with running surfaces 170&190/65 cm (not for h/p/cosmos locomotion®) 		1 Inquire
6 cos102187 Footboard right extra wide (speed) 190/65
for diagnostics and safe jumping on and off during sprint and co-ordination training 		1 Inquire
7 cos14764 Footboard left extra wide (speed) 190/65
for diagnostics and safe jumping on and off during sprint and co-ordination training 		1 Inquire
8 cos10170 Safety arch 65 with harness & chest belt / fall-stop prevention
fall protection for all applications (mandatory for high risk applications); for running surface 65 cm wide 		1 Inquire
9 cos14903-03-L Chest belt L for safety arch
chest belt for safety arch, size L (chest measurement: 105-135 cm) 		5 Inquire
10 cos14903-03-M Chest belt M for safety arch
chest belt for safety arch, size M (chest measurement: 85-115 cm) 		5 Inquire
11 cos14903-03-S Chest belt S for safety arch
chest belt for safety arch, size S (chest measurement: 65-95 cm) 		5 Inquire

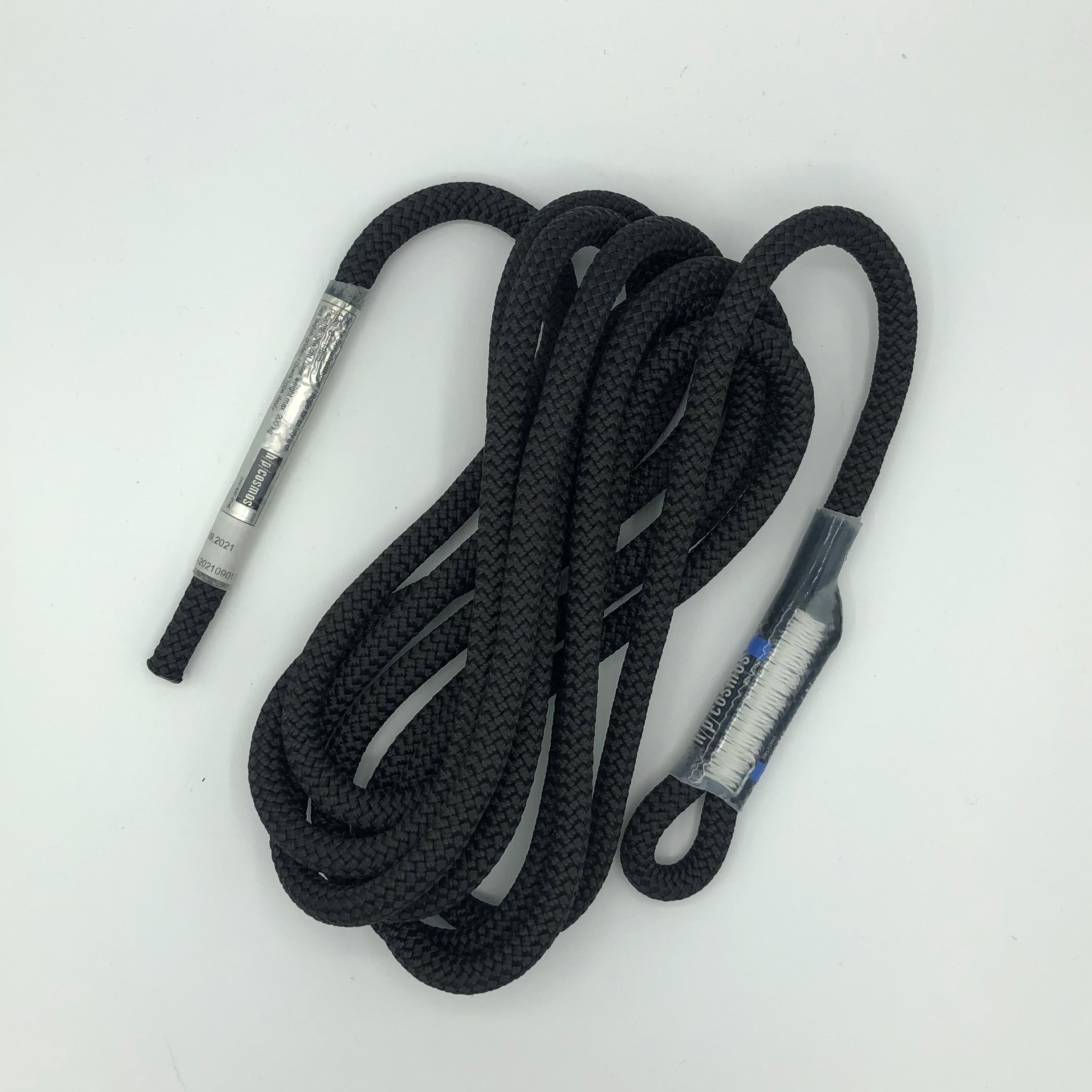

12 cos10670-01ret Rope 4.3m (replacement) for [cos10079] & [cos10170 - cos10173]
Renew the rope every 24 months, or sooner if it shows any signs of wear or damage. 		1 Inquire
13 cos10670-01ret Rope 4.3m (replacement) for [cos10079] & [cos10170 - cos10173]
rope (replacement) for safety arch; to be replaced every 24 months or at the first sign of wear 		1 Inquire
14 cos13476-01 DELL Laptop Computer
technical details and specification on request 		1 Inquire
15 cos00097010035 Connection cable RS232 10 m
RS232, 10 m (Sub-D 9-pin male/female), USB-Adapter optionally available (cos12769-01) 		1 Inquire
16 cos12769-01 USB to RS232 converter
Chipsatz: FTDI / FT232RL 1× RS232-plug(Sub D 9-pol. male) / 1× USB A Stecker 		2 Inquire
17 cos12769-01 USB to RS232 converter
converter from USB to serial port RS232 (Sub-D 9-pin male) 		2 Inquire
18 cos16487 3rd interface RS232 com3 coscom® 115,200 bps
additional RS232 port for ECG, EEG, PC, or UserTerminal with increased data speed 		1 Inquire
19 cos30023-01va02 robowalk® expander B 170&190/65
for the rear area - for all h/p/cosmos treadmills with running surface 170&190/65 cm 		1 Inquire
20 cos101050-L Leg cuff thigh L, 1 pair
1 Inquire
21 cos101050-M Leg cuff thigh L, 1 pair
2 Inquire
22 cos101050-S Leg cuff thigh S, 1 pair
1 Inquire
23 cos30022-02va02 robowalk® expander front 170&190/65
 		1 Inquire
Zwischensumme netto0,00 €
MwSt. 19%0,00 €
Gesamtbetrag (brutto inkl. MwSt.)
